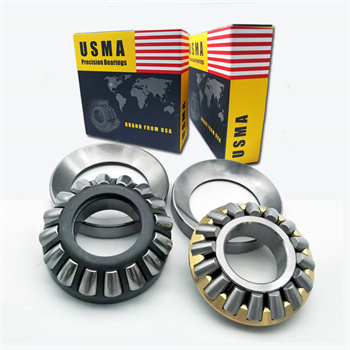

29344M THRUST ROLLER BEARING 29344 USMA BEARING
29344M THRUST ROLLER BEARING 29344
Item : 29344M . Brand : USMA BEARING . Cage Material : Brass . Dimension : 220*360*85 mm . Weight : 31.2kg . Stock : Ready in Stock| Quantity: | |
|---|---|
-
29344M
-
USMA
29344M THRUST ROLLER BEARING 29344 USMA BEARING
Thrust spherical roller bearings are ideal for applications where conditions include heavy loads, difficulties in establishing or maintaining housing alignment and problems with shaft deflection.Spherical thrust roller bearings have specially designed raceways and accommodate a large number of asymmetrical rollers. The rollers have an optimum conformity with the washer raceways to optimize load distribution along the roller length.
Thrust spherical roller bearing size chart:
| Bearing number | d mm | D mm | B mm |
| 29230 | 150 | 215 | 39 |
| 29232 | 160 | 225 | 39 |
| 29234 | 170 | 240 | 42 |
| 29236 | 180 | 250 | 42 |
| 29238 | 190 | 270 | 48 |
| 29240 | 200 | 280 | 48 |
| 29244 | 220 | 300 | 48 |
| 29248 | 240 | 340 | 60 |
| 29252 | 260 | 360 | 60 |
| 29256 | 280 | 380 | 60 |
| 29260 | 300 | 420 | 73 |
| 29264 | 320 | 440 | 73 |
| 29268 | 340 | 460 | 73 |
| 29272 | 360 | 500 | 85 |
| 29276 | 380 | 520 | 85 |
| 29280 | 400 | 540 | 85 |
| 29284 | 420 | 580 | 95 |
| 29288 | 440 | 600 | 95 |
| 29292 | 460 | 620 | 95 |
| 29296 | 480 | 650 | 103 |
| 292/500 | 500 | 670 | 103 |
| 292/530 | 530 | 710 | 109 |
| 292/560 | 560 | 750 | 115 |
| 292/600 | 600 | 800 | 122 |
29344M THRUST ROLLER BEARING 29344 USMA BEARING
Thrust spherical roller bearings are ideal for applications where conditions include heavy loads, difficulties in establishing or maintaining housing alignment and problems with shaft deflection.Spherical thrust roller bearings have specially designed raceways and accommodate a large number of asymmetrical rollers. The rollers have an optimum conformity with the washer raceways to optimize load distribution along the roller length.
Thrust spherical roller bearing size chart:
| Bearing number | d mm | D mm | B mm |
| 29230 | 150 | 215 | 39 |
| 29232 | 160 | 225 | 39 |
| 29234 | 170 | 240 | 42 |
| 29236 | 180 | 250 | 42 |
| 29238 | 190 | 270 | 48 |
| 29240 | 200 | 280 | 48 |
| 29244 | 220 | 300 | 48 |
| 29248 | 240 | 340 | 60 |
| 29252 | 260 | 360 | 60 |
| 29256 | 280 | 380 | 60 |
| 29260 | 300 | 420 | 73 |
| 29264 | 320 | 440 | 73 |
| 29268 | 340 | 460 | 73 |
| 29272 | 360 | 500 | 85 |
| 29276 | 380 | 520 | 85 |
| 29280 | 400 | 540 | 85 |
| 29284 | 420 | 580 | 95 |
| 29288 | 440 | 600 | 95 |
| 29292 | 460 | 620 | 95 |
| 29296 | 480 | 650 | 103 |
| 292/500 | 500 | 670 | 103 |
| 292/530 | 530 | 710 | 109 |
| 292/560 | 560 | 750 | 115 |
| 292/600 | 600 | 800 | 122 |
