Availability: | |
---|---|
Quantity: | |
29422 E
USMA

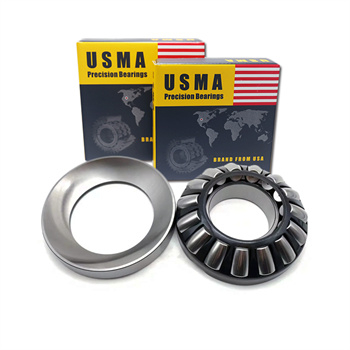

Good Price USMA Bearing 29422 E Spherical Thrust Roller Bearing 29422 E Bearing
29422E USMA BEARING Spherical roller thrust bearings have specially designed raceways and asymmetrical rollers. The bearings can accommodate axial loads acting in one direction and simultaneously acting radial loads. The load is transmitted between the raceways via the rollers at an angle to the bearing axis, while the flange guides the rollers.
Depending on their series and size the spherical roller thrust bearings are manufactured to two basic designs:
1.High quality and good service
2.Less friction and low noise
3.Competitve price
4.Durable
5.Ability to carry heavy loads
6.Less coefficient of fricti on
7.High limiting speed
8.Large size range:inner diameter from 20mm-800mm
Model | Dimension (mm) | |||
New Model | Old Model | d | D | H |
29236 | 9039236 | 180 | 250 | 42 |
29238 | 9039238 | 190 | 270 | 48 |
29244 | 9039244 | 220 | 300 | 48 |
29252 | 9039252 | 260 | 360 | 60 |
29256 | 9039256 | 280 | 380 | 60 |
29260 | 9039260 | 300 | 420 | 73 |
29320 | 9039320 | 100 | 190 | 42 |
29322 | 9039322 | 110 | 190 | 48 |
29324 | 9039324 | 120 | 210 | 54 |
29326 | 9039326 | 130 | 225 | 58 |
29328 | 9039328 | 140 | 240 | 60 |
29330 | 9039330 | 150 | 250 | 60 |
29332 | 9039332 | 160 | 270 | 67 |
29334 | 9039334 | 170 | 290 | 73 |
29336 | 9039336 | 180 | 300 | 73 |
29338 | 9039338 | 190 | 320 | 78 |
29240 | 9039240 | 200 | 280 | 48 |
29244 | 9039244 | 240 | 360 | 85 |
29248 | 9039248 | 240 | 380 | 85 |
29256 | 9039256 | 280 | 440 | 95 |
29260 | 9039260 | 300 | 480 | 109 |
29412 | 9039412 | 60 | 130 | 32 |
29413 | 9039413 | 65 | 140 | 45 |
29414 | 9039414 | 70 | 150 | 48 |
29415 | 9039415 | 75 | 160 | 51 |
29416 | 9039416 | 80 | 170 | 54 |
29417 | 9039417 | 85 | 180 | 58 |
29418 | 9039418 | 90 | 190 | 60 |
29420 | 9039420 | 100 | 210 | 67 |
29422 | 9039422 | 110 | 230 | 73 |
29424 | 9039424 | 120 | 250 | 78 |
29426 | 9039426 | 130 | 270 | 85 |
29428 | 9039428 | 140 | 280 | 85 |
29430 | 9039430 | 150 | 300 | 90 |
29432 | 9039432 | 160 | 320 | 95 |
99434 | 9039434 | 170 | 340 | 103 |
29434 | 9019434 | 180 | 340 | 103 |
29436 | 9039436 | 180 | 360 | 109 |
29438 | 9039438 | 190 | 380 | 115 |
29440 | 9039440 | 200 | 400 | 122 |
99440 | 9019440 | 200 | 400 | 122 |
29444 | 9039444 | 220 | 450 | 122 |
29448 | 9039448 | 240 | 440 | 122 |
29452 | 9039452 | 260 | 480 | 132 |
