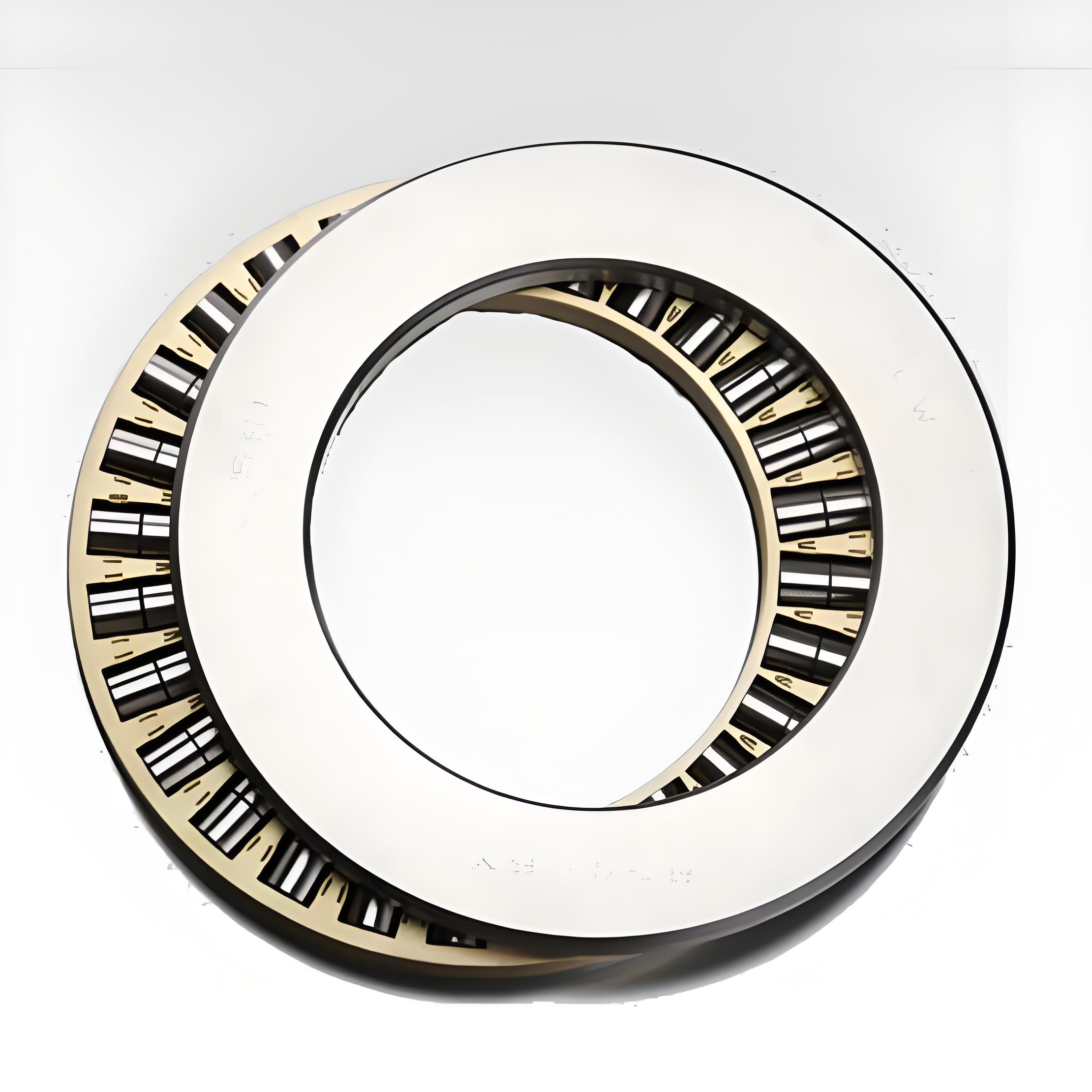

USMA ECCENTRIC THRUST ROLLER BEARING 525489

Availability:

Quantity:



Inquire Add to Basket

Model:
525489
Brand:
USMA

Product Description

525489 eccentric thrust roller bearing 525489

525489 bearing is cylindrical roller thrust bearing, that are designed to accommodate heavy axial loads and impact loads. 525489 bearing is very stiff and require little axial space, must not be subjected to any radial load.

Weight and Dimensions

Inner (d) MM419,5
Outer (D) MM571
Width (B) MM89
Weight (kg)71.1

Product Properties

Cage TypeM - Brass Cage
PrecisionStandard Precision

Double-Row Thrust Tapered Roller Bearings relative series

Bearing NO.			Boundary Dimensions (mm)								Basic Load Rating (kN)		Wt (kg)
REF	REF	REF	d	D	H	d1	D1	B	r1min	r2min	Dynamic	Static	Wt (kg)
829234		515805	160	300	110	187	190	34	1	1.5	580	2900	3.5
829234	350980C	528974	170	240	84	182	184	20	0.6	2	380	1380	12.5
829736	353162	528994	180	280	90	192	196	20	1	2	580	2900	21
829244	351019C	528876	220	300	96	231	236	22	0.6	2	450	1800	19.5
829746			230	400	180	254	260	42	1	3	980	4800	114
829748	354182C	529086	240	320	96	251	256	22	0.6	2	430	2000	21.5
829950	353005	502010	250	380	100	265	275	22	0.6	2	850	5000	42.3
829252	350981C	509352	260	360	92	276	285	20	1	2	630	3200	27
829954	351164C	527907*	270	450	180	302	310 (316	45 (44	2	5	1700	6100	118
829260		524740	300	420	100	326	330	23	1.5	2.5	890	4500	42
829264	353102C	528562	320	440	108	348	355	26	1.1	3	990	4700	48
829764	350982C	509654	320	470	130	340	350	30	1.1	3	1350	5800	79
829970	351100C	530739	350	490	130	382	390	30	1.1	3	1200	5300	73.5
829970K	353006	522008	350	540	135	386	400	30	1.1	4	1750	9200	112
829772			360	530	145	382	396	34	1.5	4	1820	9550	110
829272		524194	360	560	200	385	396	48	1.5	4	2400	12500	180
829276		513828	380	530	130	398	410	30	1.1	3.5	1800	10000	95
829776	351175C	513125	380	560	130	416	430	32	1.5	3	1800	10000	108
829976	BFDB35 3204	545936	380	650	215	449	450	65	2	4	3400	17200	275
829780		540162	400	650	200	439	450	50	1.5	5	2700	13800	250
829784	351121C	509392*	420	620	170	458	465 (470	35	1.5	3	2420	12200	185
829784K	BFDB35 3200/ HA3	545991*	420	620	185	458	465 (470	50	1.5	3	2420	12200	200
829788	353152	534038*	440	645	167	483	490 (500	50	3	4	1980	10800	190
829990	350916D	513401*	450	645	155	483	490 (500	38	1.5	4	1980	10800	170
829994	353151		470	720	200	519	535	50	3	4	3450	18000	285
829796		547584	480	710	218	564	575	57	3	4	2900	13000	280
8292/530	351475C	511746	530	710	218	564	575	57	3	3	2300	14000	245
8297/550	350976C	515196	550	760	230	589	610	50	3	5	2950	13500	310
8292/670	351761A		670	900	230	709	725	50	4	5	3600	19500	425
