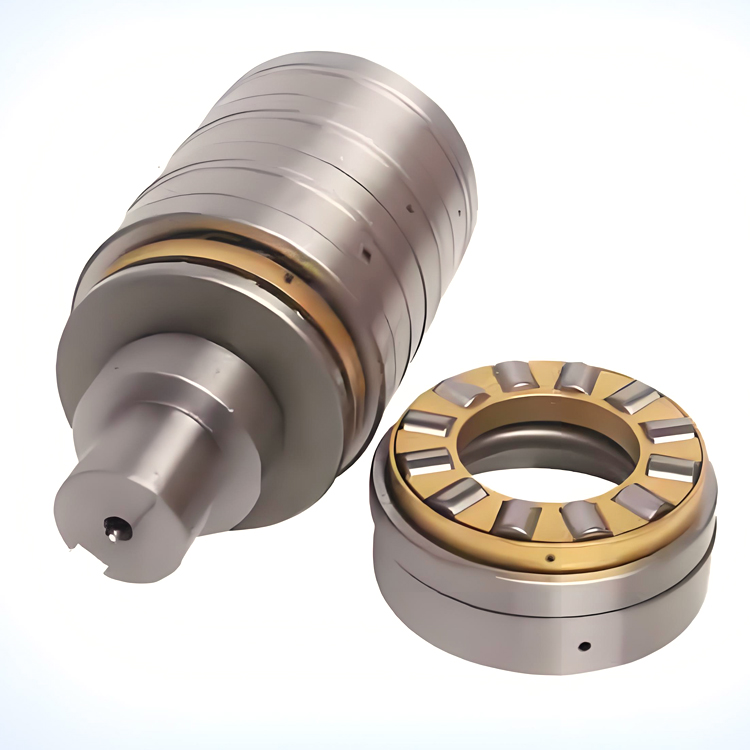

USMA TAC-040100-202 TANDEM THRUST ROLLER BEARINGS FOR TWIN SCREW EXTRUDER
USMA TAC-040100-202 TANDEM THRUST ROLLER BEARINGS FOR TWIN SCREW EXTRUDER
| Quantity: | |
|---|---|
-
TAC-040100-202
-
USMA
USMA TAC-040100-202 TANDEM THRUST ROLLER BEARINGS FOR TWIN SCREW EXTRUDER
Tandem Thrust Bearing Description
Tandem thrust cylindrical roller bearings with small radial cross section size, compact structure, large axial load capacity, each column roller uniform load, wear resistance, small vibration noise and long life and other characteristics, is the ideal of parallel twin screw extruder screw spindle bearing.Users according to screw center distance, space and load size in our company to choose two, three, four, five, six, seven or eight columns tandem bearings.
Tandem Thrust Bearings are available
| Bearing | Size (mm) | Baisc Load（KN） | Weight | |||||
| Code | old code | d | D | H | H1 | Ca | Coa | (kgs) |
| M3CT420A | T3AR420A | 4 | 20 | 43.5 | 32 | 17 | 42 | 0.061 |
| M3CT420EA | T3AR420EA | 4 | 20 | 43.5 | 32 | 17 | 42 | 0.053 |
| M5CT420A | T5AR420A | 4 | 20 | 65.5 | 54 | 26 | 69 | 0.093 |
| M6CT420A | T6AR420A | 4 | 20 | 77.5 | 65 | 29 | 83 | 0.115 |
| M6CT424X1A | T6AR424X1A | 4 | 24 | 71.5 | 62 | 42 | 112 | 0.168 |
| M4CT1037A | T4AR1037A | 10 | 37 | 102 | 78 | 91 | 275 | 0.55 |
| M5CT1037EA | T5AR1037EA | 10 | 37 | 122 | 99 | 109 | 343 | 0.57 |
| M5CT1242A | T5AR1242A | 12 | 42 | 133 | 104.6 | 111.7 | 356 | 0.925 |
| M6CT1242EA | T6AR1242EA | 12 | 42 | 154 | 125.7 | 134 | 427.2 | 1.07 |
| M7CT18100A | T7AR18100A | 18 | 100 | 306 | 266 | 1023 | 4560 | 12.04 |
| M7CT18100AY | T7AR18100AY | 18 | 100 | 328 | 266 | 1023 | 4560 | 12.15 |
| M5CT2262A | T5AR2262A | 22 | 62 | 143.5 | 110 | 263 | 1151 | 2.2 |
| M4CT2264A | T4AR2264A | 22 | 64 | 136 | 101 | 221 | 921 | 2.11 |
| M5CT2264A | T5AR2264A | 22 | 64 | 162 | 128.5 | 262 | 1151 | 2.55 |
| M5CT2264EA | T5AR2264EA | 22 | 64 | 162 | 128.5 | 263 | 1151 | 2.425 |
| M6CT2264A | T6AR2264A | 22 | 64 | 224 | 153 | 298 | 1351 | 3.52 |
| M4CT2362A | T4AR2362A | 23 | 62 | 165 | 105 | 222 | 921 | 2.14 |
| M5CT2385A | T5AR2385A | 23 | 85 | 196 | 161.5 | 464 | 2060 | - |
| M7CT2385AY | T7AR2385AY | 23 | 85 | 288.5 | 266.5 | 686 | 3604 | 8.13 |
| M3CT2468A | T3AR2468A | 24 | 68 | 118 | 70 | 176 | 772 | 1.75 |
| M5CT2468A | T5AR2468A | 24 | 68 | 156 | 119 | 262 | 1287 | 2.92 |
| M3CT2468A1a | T3AR2468A1a | 24 | 68 | 188 | 70 | 176 | 772 | 2.38 |
| M3CT2468A1 | T3AR2468A1 | 24 | 68 | 218 | 70 | 176 | 772 | 2.31 |
| M7CT25120A | T7AR25120A | 25 | 120 | 336 | 296 | 1345 | 6899 | 21.4 |
| M7CT25120AY | T7AR25120AY | 25 | 120 | 358 | 296 | 1345 | 6899 | 21.67 |
| M4CT2866A | T4AR2866A | 28 | 66 | 137.5 | 107.5 | 254 | 950 | - |
| M4CT2866A+ | T4AR2866A+ | 28 | 66 | 155.5 | 107.5 | 254 | 950 | 2.44 |
| M5CT2876A | T5AR2876A | 28 | 76 | 188 | 135 | 443 | 1464 | 4.73 |
| M5CT3073A | T5AR3073A | 30 | 73 | 190 | 151 | 295 | 1188 | 4.1 |
| M6CT3073AY | T6AR3073AY | 30 | 73 | 246 | 182 | 260 | 1140 | 5.037 |
| M5CT3073EA | T5AR3073EA | 30 | 73 | 190 | 151 | 314 | 1287 | 3.877 |
| M6CT30145A | T6AR30145A | 30 | 145 | 381 | 335 | 1800 | 7500 | 34.8 |
| M6CT30145AY | T6AR30145AY | 30 | 145 | 397 | 335 | 1801 | 8874 | 34.7 |
| M6CT30150A | T6AR30150A | 30 | 150 | 381 | 335 | 1992 | 9932 | 39.4 |
| M6CT30150AY | T6AR30150AY | 30 | 150 | 397 | 335 | 1917 | 7400 | 39.35 |
| M4CT3278A | T4AR3278A | 32 | 78 | 195 | 110.5 | 358 | 1331 | 3.83 |
